About Extended Vertical Logistics
From ficsit.appThis mod add 5:1 and 4:2 mergers & splitters, with their reversed versions.
Extended Vertical Logistics
A Satisfactory mod adding a family of Universal Splitters and Mergers that can be placed freely on the ground or a foundation, with conveyor lifts run into them afterwards.
Why
Update 1.1 added vertical splitters and mergers, but they are not build-menu items. This mod makes them real buildings: place one anywhere, then run the lift into it.

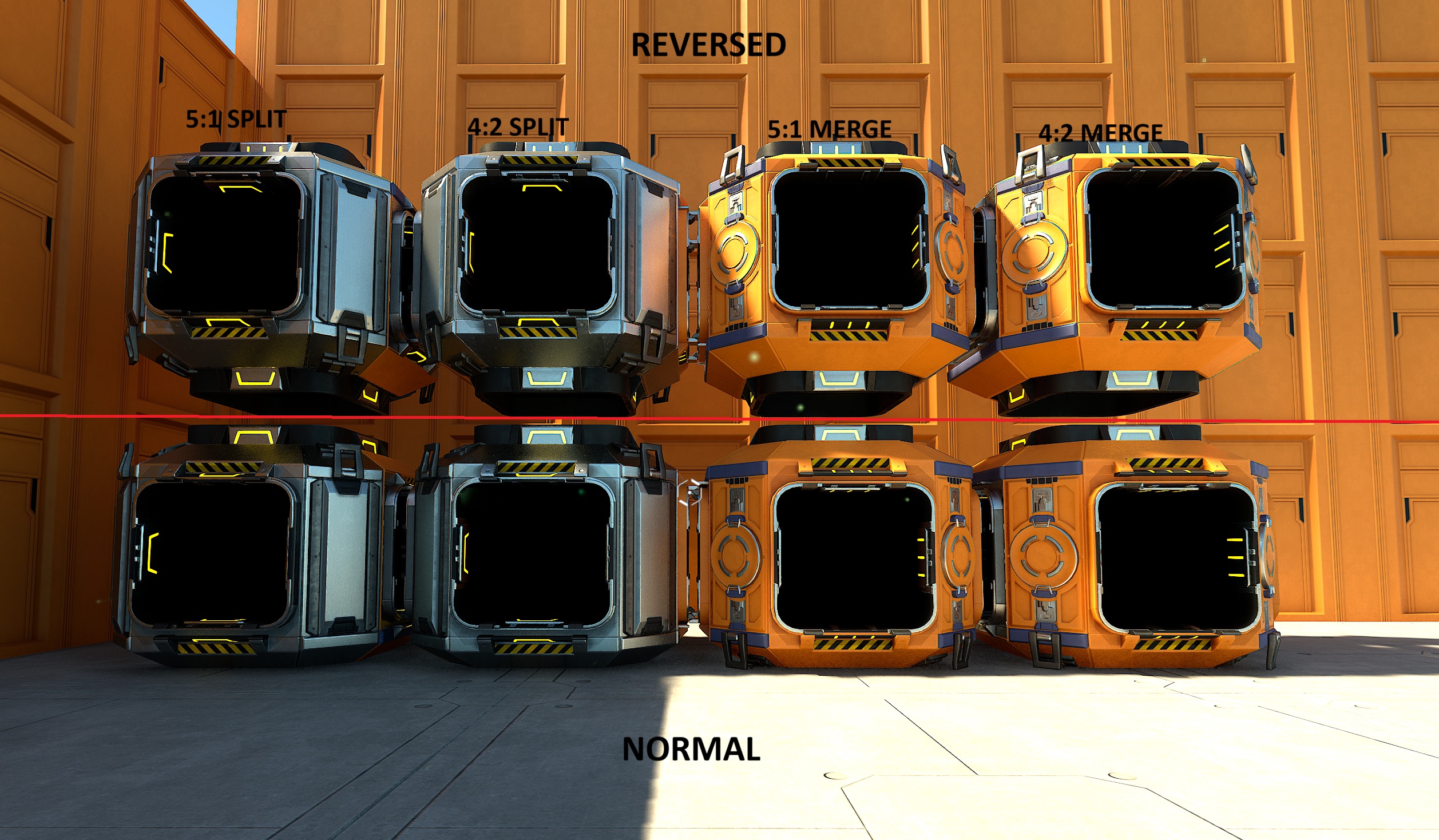

The buildings

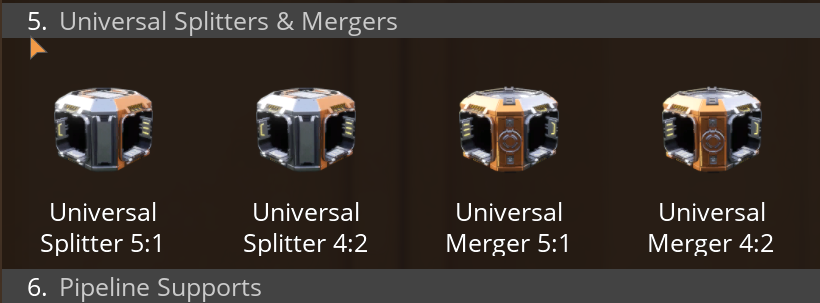

They live in their own Universal Splitters & Mergers subcategory under Logistics.

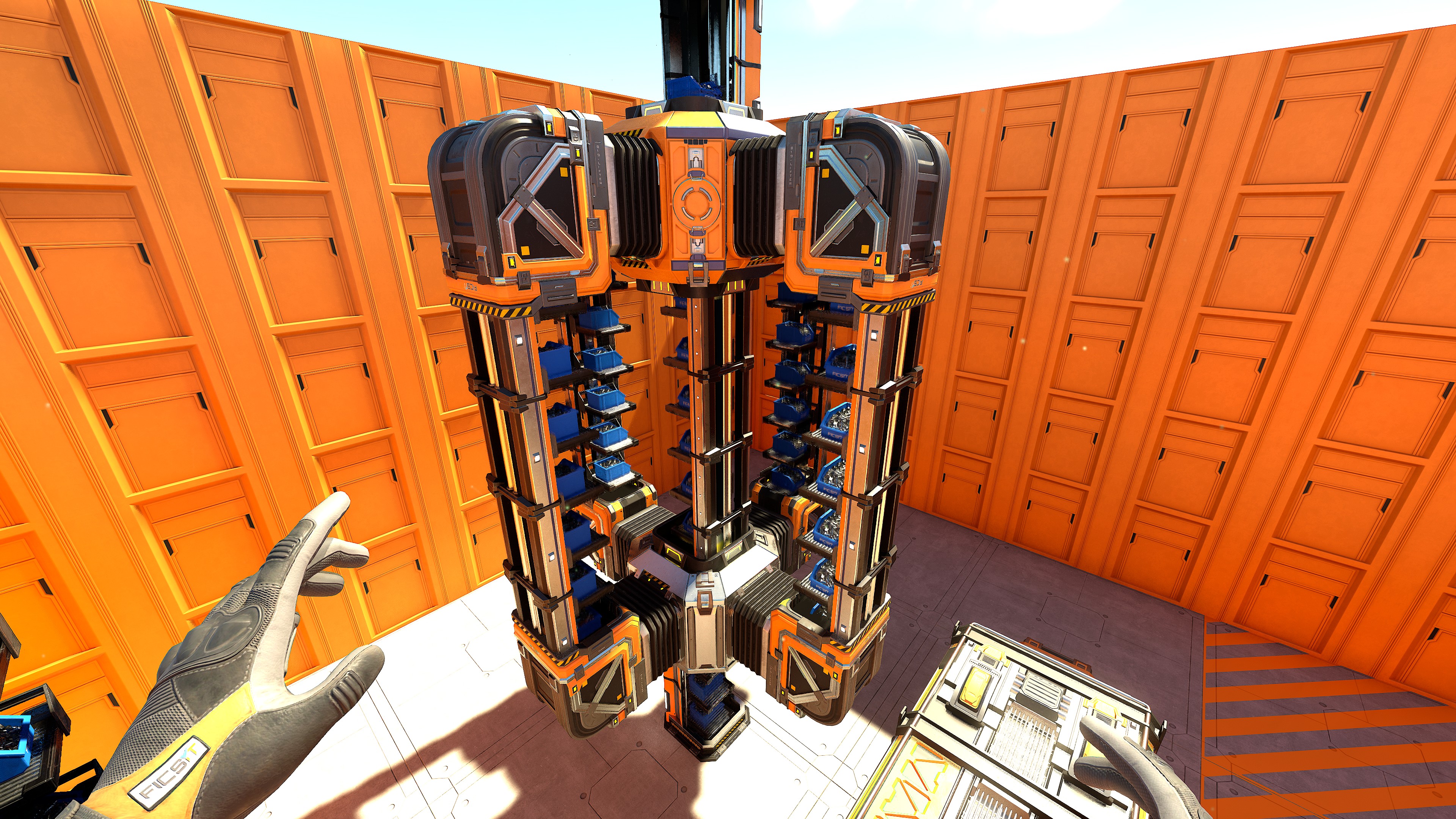

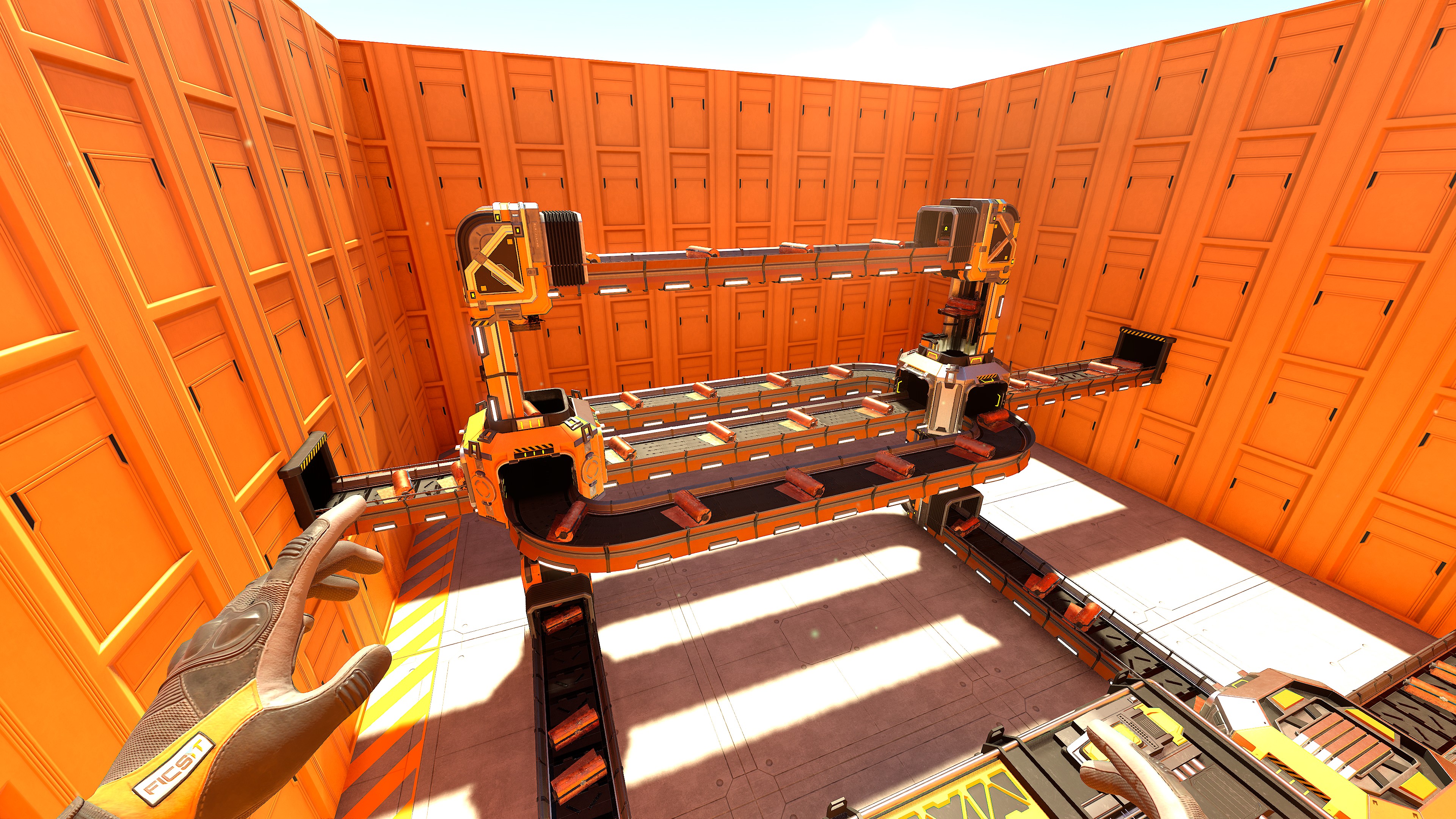

| Building | Ports | Notes | |---|---|---| | Universal Splitter 5:1 | 1 in, 5 out | four horizontal outputs plus a vertical one | | Universal Merger 5:1 | 5 in, 1 out | the mirror image | | Universal Splitter 4:2 | 2 in, 4 out | a belt passes straight through while a lift taps it | | Universal Merger 4:2 | 4 in, 2 out | the same shape for merging |
Features
- Free placement on the ground existing lifts, belts.
- Reversible flow - press the build-mode key to swap the vertical direction
- Belt snapping
- Lift snapping
- Guideline snapping
- Unlocks alongside vanilla versions
- vertical to vertcial splitter lift snapping
- splitters snap to floor holes
Requirements
- Satisfactory 1.2.4.0 (CL 502094) or newer
- Satisfactory Mod Loader ^3.12.0
Highlights
From source dataGame versions
Built for Satisfactory >=502094.
Footprint
Rated a light load on a server.
Last update
Its author last shipped an update 52d ago.
Extended Vertical Logistics on Nxeon
From our catalogue- One-click install
- Supported on Nxeon Satisfactory servers. We download it from ficsit.app, place it, and restart the server.
- Server side
- Required on the server
- Server load
- light
- Smallest plan we suggest
- Satisfactory — 8 GB (8 GB RAM). This follows our own load rating above, not a benchmark.
- Latest build
- 1.1.0, released 2026-08-24
Run Extended Vertical Logistics on a Satisfactory server
Pick a server or deploy a new one above; it is installed in one click.
What kind of mod it is
From the catalogTechnology & automation
Machines, power, logistics and automation.
Runs on your server
From source side supportficsit.app lists Extended Vertical Logistics as required on the server. Check its ficsit.app page to see whether players need it too.
Compatibility
- Game
- Satisfactory
- Runs on
- Serverrequired on the server
- Game versions
- >=502094
Verified at the source
- ✓ficsit.appOfficial listing, checked 2026-10-15Open ↗
- ✓Authorange64, as published on ficsit.app
- ✓LicenseNot published by the sourceFree
